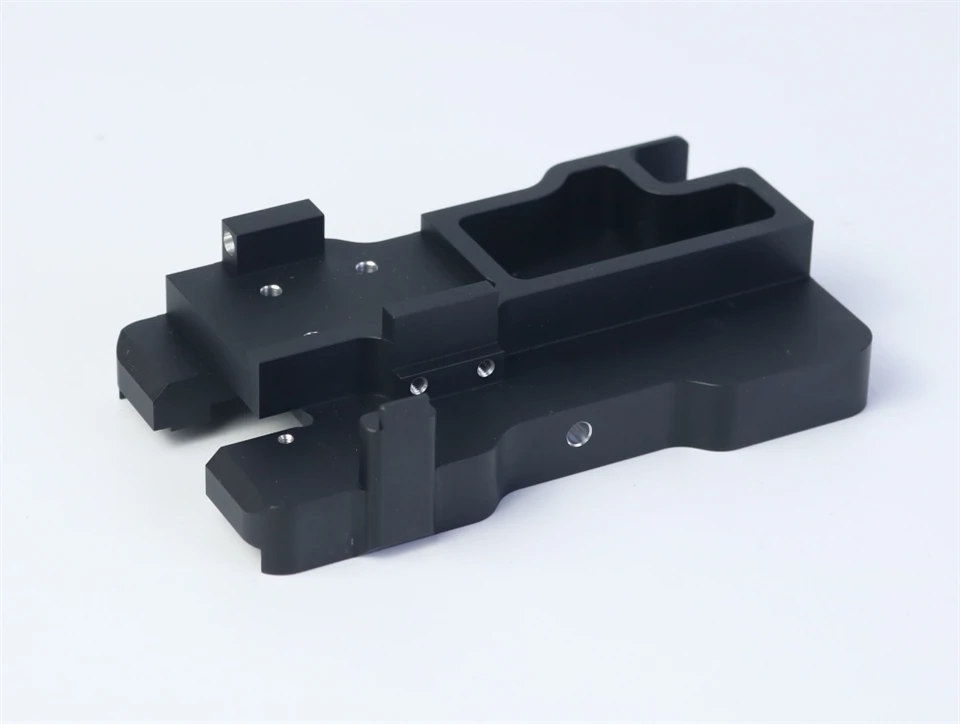

Ua Sandblasted Dub Anodized Al6061 Positioning Phaj
Machinery Axis: 3,4,5,6
Kev kam rau siab: +/- 0.01mm
Qhov tshwj xeeb: +/- 0.005mm
Nto Roughness: Ra 0.1 ~ 3.2
Muaj peev xwm muab khoom: 500000 Daim / Lub Hlis
1-Txoj kev txiav txim yam tsawg kawg nkaus
3- Teev Quotation
Qauv: 1-3 Hnub
Lub sij hawm xa tuaj: 7-14 Hnub
Daim ntawv pov thawj: Kev kho mob, Aviation, Tsheb,
ISO9001:2015,AS9100D,ISO13485:2016,ISO45001:2018,IATF16949:2016,ISO14001:2015,RoSH,CE thiab lwm yam.
Cov khoom siv: aluminium, tooj dag, tooj liab, hlau, stainless hlau, hlau, yas, thiab cov ntaub ntawv sib xyaw thiab lwm yam.
Xa kev nug
Product Details ofUa Sandblasted Dub Anodized Al6061 Positioning Phaj
Dab tsi yog Sandblasted Dub Anodized Al6061 Positioning Phaj?
A qhov chaw phajua los ntawmib 6061Feem ntau siv hauv CNC fixtures, automation modules, laser khoom, optical alignment bases thiab robotic assemblies. Thaum nws mus dhausandblasting + dub anodizing, ib feem tau txais matte -zoo li qub, muaj zog corrosion kuj, thiab zoo dua hnav durability - feem ntau tseem ceeb heev rau rov clamping los yog positioning raug.
Nyob rau hauv peb lub Hoobkas, hom phaj no yog ib qho ntawm cov khoom thov tshaj plaws rau cov tshuab OEMs thiab fixture designers vim nws sib npauglub zog, machinability, thiab zoo nkauj zoo nkauj.
Yog vim li cas Designers nyiam Al6061 rau Positioning Phaj
Raws li cov ntaub ntawv machining tiag tiag los ntawm peb lub rooj cob qhia (2023-2024 batch data):
| Khoom | Al6061-T6 Cov ntaub ntawv tseeb | Kev cuam tshuam rau kev tsim khoom |
|---|---|---|
| Hardness (HB) | 95–100 | Zoo tagnrho rau machining ruaj khov |
| Flatness tom qab milling | Tsawg dua los yog sib npaug li 0.03 mm / 200 mm | Zoo dimension stability |
| Nto roughness ua ntej anodizing | 0.4-0.8 hli | Smooth puag rau uniform anodizing |
| Anodizing txheej thickness | 10–18 μm | Tsim nyog rau industrial fixtures |
Cov txiaj ntsig no yog los ntawm peb qhov ntsuas ntsuas siv Mitutoyo ntsuas & txheej ntsuas thaum peb cov neeg siv khoom siv rau cov khoom siv hluav taws xob automation.
Yuav Ua Li Cas Sandblasting Txhim Kho Nto Zoo
Ua ntej anodizing, phaj feem ntau yogsandblasted (Bead blasting #100-#150). Raws li peb cov txheej txheem kev cob qhia tiag tiag:
Blasting siab:0.5-0.6 MPa
Nozzle nrug:180-220 hli
Qhov tshwm sim roughness:1.6-2.2 hli
Cov nyhuv: Tshem tawm cov cuab yeej zoo / muab lub kaum hloov pauv / muab matte zoo nkauj
Cov neeg siv khoom xaiv sandblasting vim nws tiv thaiv qhov tsis sib xws gloss koj tau txais nrog CNC raw-milled aluminium, tshwj xeeb tshaj yog rau cov phaj loj.
Dub Anodizing Performance: Cov ntaub ntawv ntsuas tiag tiag
Peb tau anodized ntau tshaj8,000+ Al6061 daim hlautxij li xyoo 2019. Raws li cov ntawv QC tiag:
| Cov khoom kuaj | Yam tshwm sim | Sau ntawv |
|---|---|---|
| Txheej thickness | 12–16 μm | Haum rau kev lag luam siv |
| Xim uniformity | ΔE < 1.0 | Thaum sandblasting yog txawm |
| ntsev tsuag kuj | 336-480 hnub | Raws li cov neeg siv khoom - tshwj xeeb specs |
| Hnav tsis kam | Tsis pom khawb tom qab 50 lub voj voog | 1kg load qhuav txhuam kev xeem |
Cov txheej dub anodized tseem pab zais cov ntiv tes thiab khawb me me, uas yog vim li cas cov cuab yeej siv hluav taws xob sib koom ua ke nyiam matte- cov xim dub.
CNC Machining Txheej txheem rau txoj hauj lwm Plate (theem-los ntawm-Step)
Ntu no sib phimYuav ua li cas -Nyob rau kev tshawb nrhiav.
1. Kev npaj khoom siv
Raw Al6061-T6 phaj txheeb xyuas los ntawm PMI
Pom txiav kam rau ua: ± 0.3mm
Kev ntxhov siab-relief aging for plates over 8 mm thickness
2. Rough Milling
Xaus zeb Ø10 / Ø16 carbide
Pub: 1800-2200 mm / min
Qhov tob ntawm kev txiav: 0.4-0.8 mm
Lub hom phiaj: Tshem tawm 80-85% cov khoom siv ntau dhau
3. Precision Pocketing & Qhov Machining
Cov cuab yeej hluav taws xob them nyiaj rau cov cheeb tsam nruj
Qhov tseem ceeb positioning qhov khaws cia ntawm± 0.01 hli
Datum ntsib milled kawg kom tsis txhob muaj kev ntxhov siab hloov
4. Deburring & Ntug txheej txheem
Robot txhuam los yog phau ntawv 800 # sandpaper
Loj: 0.3-0.5mm
5. Sandblasting
Matte, ntiv tes -resistant tag
Xyuas kom txawm tias anodizing tone
6. Dub Anodizing
Hardness txhim kho / tiv thaiv - hnav
Qhov saum npoo zoo li ua ib qho sib sib zog nqus dub
Kev xaiv sealing: DI dej sealing kom zoo dua corrosion
Cov teeb meem zoo sib xws & Yuav ua li cas peb kho lawv
Raws li cov ntaub ntawv tsim tawm tiag.
1. Xim ntxoov ntxoo tsis sib xws
Root ua rau:
Tsis sib xws sandblasting
Kev sib xyaw ua ke ntawm Al6061
Kho:
Peb khiav ib batch-cov ntaub ntawv nyuaj hardness kuaj thiab tuav ruaj blast siab.
2. Warping Tom qab Anodizing
Feem ntau tshwm sim ntawm daim hlau nyias dua 6 hli.
Kho:
Ua ntej -machining nyem nyem
Ob -sab sib npaug machining
Clamp-dawb anodizing racks
Flatness txhim kho los ntawm0.12 hli → 0.04 hlinyob rau hauv tus neeg muas zaub 2024 xaj.
3. Cov cim ntiv tes ntawm Semi-Gloss Surfaces
Kho:
Hloov mus rauzoo sandblasting(#150 grit) + DI sealing - ua rau 38% txo cov cim pom raws li cov neeg siv khoom QC tawm tswv yim.
Cov ntsiab lus tseem ceeb Cov neeg yuav khoom feem ntau nug txog
Tshooj lus no txaus siabkev lag luam / kev lag luam - cov lus nug xav tau.
| Parameter | Tus nqi |
|---|---|
| Khoom siv | Al6061-T6 |
| Nto tiav | Sandblasted + Dub Anodized |
| Flatness | Tsawg dua los yog sib npaug li 0.05 hli |
| Positioning qhov kam rau ua | ± 0.01-0.02 hli |
| Phaj thickness kam rau ua | ± 0.05 hli |
| Anodizing thickness | 10–18 μm |
Yog tias koj xav tau kev zam nruj heev (piv txwv li, robotic optical calibration), peb tuaj yeem khaws cov qhov nyob hauv± 0.005 hlisiv reaming + kub - tswj kev ua tiav.
Daim ntawv thov ntawm Dub Anodized Al6061 Positioning Phaj
CNC fixture bases
Laser los yog lub koob yees duab positioning modules
Cov khoom siv semiconductor brackets
Robot calibration daim hlau
Optical lub rooj zaum
Precision automation units
Peb cov kev txiav txim feem ntau yog los ntawmautomation OEMs, cov khoom siv ntse integrators, thiabR&D lab.
Nqe Kev Pom Zoo: Dab tsi cuam tshuam tus nqi?
Los ntawm peb cov lus hais tiag tiag hauv 2024-2025:
Tus nqi tseem ceeb tsav tsheb
Phaj loj & thickness
Qhov kom muaj nuj nqis thiab kam rau ua
Anodizing spec (tus qauv / nyuaj / matte-dub)
Batch kom muaj nuj nqis(cov khoom loj dua txo tus nqi los ntawm 18-35%)
Tus nqi sib txawv (tsuas yog siv)
Cov phaj me (80 × 60 mm):$4.8–$7.5 / ib
Cov phaj nruab nrab (150 × 120 mm):$8.5–$14.0 / pc
Cov phaj loj (250 × 200 mm):$16–$28 / pc
(Tus nqi nyob ntawm seb qhov kev kos duab nyuaj & kev ua tiav.)
FAQ Txog Sandblasted Dub Anodized Al6061 Daim Ntawv Qhia
1. Puas yuav anodizing cuam tshuam qhov raug?
Anodizing ntxiv5-10 μm ib sab. Rau nruj tolerances, peb undersize qhov ua ntej anodizing.
2. Lub phaj puas tuaj yeem ua nrog Al7075 hloov Al6061?
Yog lawm-Al7075 muab lub zog zoo dua tab sis qhia me ntsis xim tsis sib xws tom qab anodizing.
3. Yuav ua li cas tuav lub phaj dub anodized?
Siv cov ntaub so dej cawv; zam cov tshuaj ntxuav alkaline uas yuav ploj mus.
